Active Harmonic Filters: Complete Guide to THD Reduction & Power Quality Solutions 2025
Industrial electrical systems face increasing power quality challenges from nonlinear devices that generate harmonic distortion, causing equipment failures, energy losses, and regulatory compliance issues. Active Harmonic Filters (AHF) provide the most effective solution for comprehensive harmonic mitigation and power quality improvement across diverse industries.
Active Harmonic Filters are crucial for ensuring optimal performance in electrical systems.
Understanding Harmonic Distortion in Modern Electrical Systems
Active Harmonic Filters tackle the issue of harmonic distortion effectively.
Sources of Harmonic Generation
Active Harmonic Filters are essential in maintaining regulatory compliance.
Utilizing Active Harmonic Filters can lead to enhanced equipment longevity.
In many applications, Active Harmonic Filters help to significantly reduce energy waste.
Nonlinear electrical devices create harmonic currents even when applied voltage is perfectly sinusoidal. These devices have proliferated across industrial and commercial facilities, significantly increasing harmonic pollution in electrical distribution systems.
Common Harmonic-Generating Equipment:
- LED and CFL lighting systems
- Switch Mode Power Supply (SMPS) units in computers and PLCs
- Variable frequency drives controlling motors and pumps
- Uninterruptible Power Supply (UPS) systems
- Arc furnaces and SCR temperature controllers
- Battery chargers and rectifier systems
Power Factor Relationship and Calculations
The fundamental relationship between apparent power, real power, and reactive power is expressed by the power triangle formula :
kVA2=kW2+kVAR2kVA2=kW2+kVAR2
Employing Active Harmonic Filters ensures that businesses meet power quality standards.
Power Factor is calculated as:
PF=kWkVAPF=kVAkW
In harmonic-rich environments, true power factor becomes:
True PF=Displacement PF×Distortion PFTrue PF=Displacement PF×Distortion PF
IEEE 519 and CEA Standards Compliance
Regulatory Requirements and Harmonic Limits
Power quality regulations mandate strict harmonic limits based on system characteristics. The IEEE 519-2022 standard establishes current distortion limits using the short-circuit ratio:
Ratio=ISCILRatio=ILISC
Where:
- ISCISC = Maximum short-circuit current at PCC
- ILIL = Maximum demand load current at PCC
Total Demand Distortion (TDD) Calculation
TDD differs from THD by using maximum demand current as the reference:
TDD=∑h=2∞Ih2IL×100%TDD=IL∑h=2∞Ih2×100%
While THD uses fundamental current:
THD=∑h=2∞Ih2I1×100%THD=I1∑h=2∞Ih2×100%
IEEE 519 Current Distortion Limits (120V-69kV Systems):
| ISC/IL | 3≤h<11 | 11≤h<17 | 17≤h<23 | 23≤h<35 | 35≤h≤50 | TDD |
|---|---|---|---|---|---|---|
| <20 | 4.0% | 2.0% | 1.5% | 0.6% | 0.3% | 5.0% |
| 20<50 | 7.0% | 3.5% | 2.5% | 1.0% | 0.5% | 8.0% |
| 50<100 | 10.0% | 4.5% | 4.0% | 1.5% | 0.7% | 12.0% |
| 100<1000 | 12.0% | 5.5% | 5.0% | 2.0% | 1.0% | 15.0% |
| >1000 | 15.0% | 7.0% | 6.0% | 2.5% | 1.4% | 20.0% |

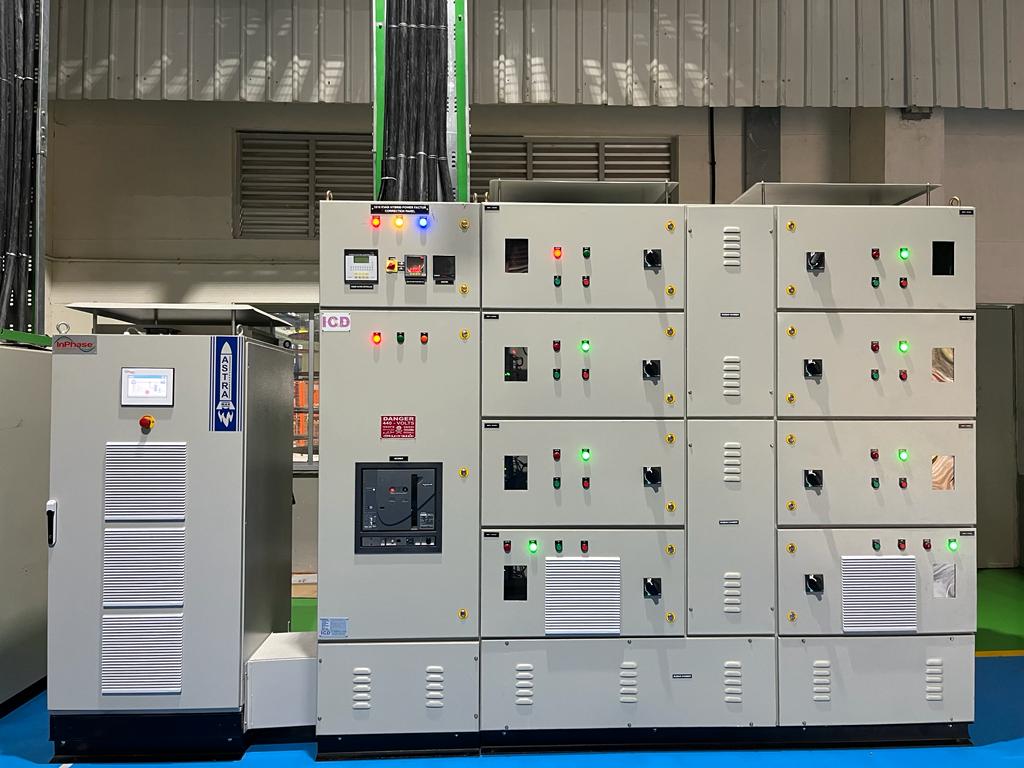

InPhase Astra Active Harmonic Filter Technology
Advanced Multi-Level Inverter Design
The InPhase Astra AHF represents cutting-edge harmonic filtering technology featuring :
Moreover, Active Harmonic Filters facilitate reduced operational costs through efficiency.
Superior 3-Level Topology:
- Filtering capability up to 61st order harmonics
- Multi-level inverter technology for superior waveform quality
- High filtering efficiency minimizing system losses
- Reduced electromagnetic interference and switching stress
Advanced Processing Power:
- Dual quad-core DSP processor operating at 4.4 GHz
- Real-time harmonic analysis and compensation
- Intelligent control algorithms for optimal performance
- Cloud connectivity for remote monitoring and diagnostics
Active Harmonic Filter Working Principle
Parallel Connection Strategy
Active Harmonic Filters connect in parallel (shunt) configuration with three-phase electrical systems:
- Real-Time Current Monitoring: Current transformers measure load currents continuously
- Harmonic Detection: Advanced algorithms identify specific harmonic frequencies and magnitudes
- Compensation Current Generation: System injects currents 180° out of phase with detected harmonics
- Dynamic Cancellation: Harmonic currents are effectively cancelled, reducing THDi to acceptable levels
The compensation current equation:
Icompensation=−IharmonicIcompensation=−Iharmonic
Industry Case Studies with Measured Results
Food Processing Industry Application
Initial Conditions:
- THDi: 18% (predominantly 5th harmonic)
- Power Factor: 0.85 lagging
- Frequent electronic component failures
Solution: 200A Active Harmonic Filter at PCC
Results After Installation:
- THDi reduced to <8% (compliant with DISCOM regulations)
- Power Factor improved to >0.95
- Zero electronic component failures reported
IT/ITES Sector Implementation
Pre-Installation Measurements:
- THDi: 24% (predominantly 5th harmonic at 18%)
- 7th harmonic: 12%
- 11th harmonic: 8%
- Power Factor: 0.78
Solution: 75A Active Harmonic Filter
Post-Installation Results:
- THDi reduced to <5%
- 5th harmonic: <3%
- Power Factor: >0.95
- Energy savings: 12% reduction in losses
Textile Manufacturing Success
Baseline Measurements:
- THDi: 12% (5th harmonic dominant at 9%)
- Frequent capacitor bank failures (monthly)
- Transformer temperature: 85°C average
Solution: 600A Active Harmonic Filter system
Achieved Performance:
- THDi reduced to <3%
- Zero capacitor bank failures over 12 months
- Transformer temperature: 70°C average
- Annual energy savings: ₹2.5 million
Technical Specifications and Performance

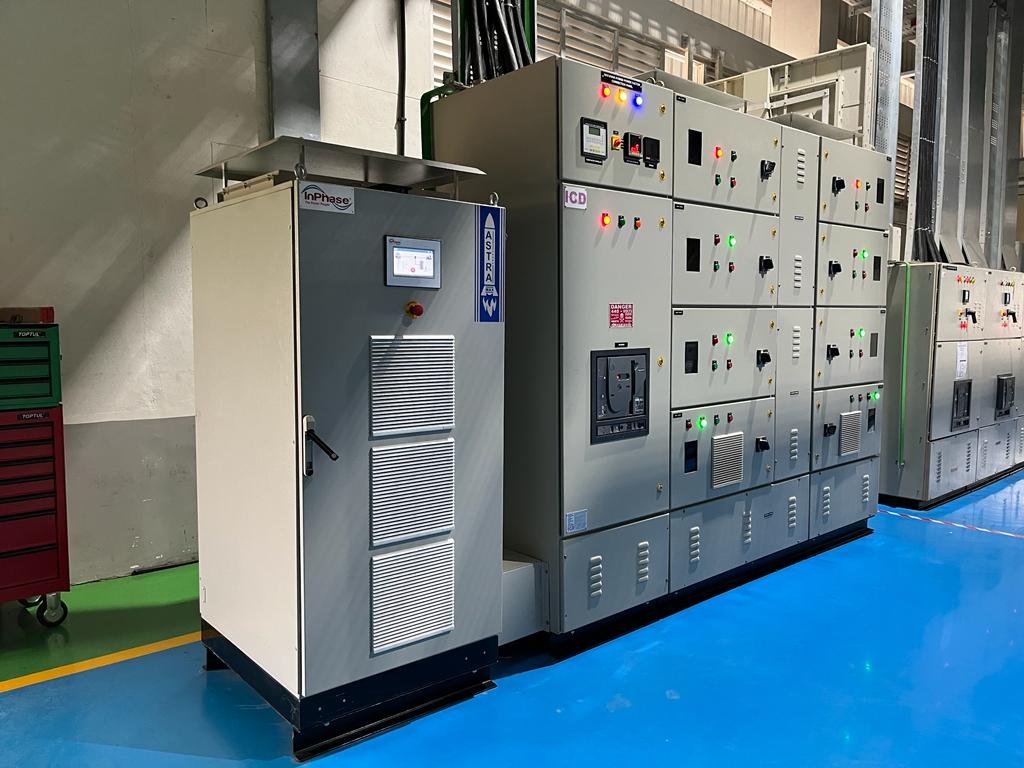

InPhase Astra AHF Features
Performance Characteristics:
- Voltage Range: 380V to 690V systems
- Current Ratings: 30A to 630A capacity
- Filtering Range: Up to 61st order harmonics
- Response Time: <20 milliseconds
- Efficiency: >98% at rated load
- THD Reduction: Typically, 85-95% improvement
Advanced Technology Benefits:
- CE Certification for European standards compliance
- Made in India for local conditions optimization
- Hybrid compensation capabilities
- Auto voltage stabilization
- Grid resonance elimination
Installation and Application Guidelines
System Design Calculations
For proper AHF sizing, calculate the harmonic current requirement:
IAHF=∑h=2∞Ih,load2IAHF=∑h=2∞Ih,load2
The minimum AHF rating should be:
RatingAHF=IAHF×Vsystem×3×Safety FactorRatingAHF=IAHF×Vsystem×3×Safety Factor
Where Safety Factor typically ranges from 1.15 to 1.25 for future load growth.
Performance Verification
Post-installation verification requires measurement of:
- Individual harmonic currents (IhIh)
- Total Harmonic Distortion (THDITHDI)
- Total Demand Distortion (TDDTDD)
- Power Factor improvement
- Energy efficiency gains
Return on Investment Analysis
Quantified Benefits
Direct Cost Savings:
- Utility penalty elimination: ₹500,000 – ₹2,000,000 annually
- Energy efficiency gains: 3-8% reduction in losses
- Equipment life extension: 25-40% increase
- Maintenance cost reduction: 30-50% decrease
Payback Period Calculation:
Payback=Initial InvestmentAnnual Savings+Energy Savings+Penalty AvoidancePayback=Annual Savings+Energy Savings+Penalty AvoidanceInitial Investment
Typical payback periods range from 12-24 months depending on application severity and utility penalty structures.
Conclusion
Active Harmonic Filters represent the most effective solution for comprehensive power quality improvement in modern industrial facilities. The InPhase Astra AHF, with its advanced 3-level topology and intelligent processing capabilities, delivers superior performance for:
Active Harmonic Filters can also contribute to improved equipment performance.
- Complete harmonic mitigation up to 61st order frequencies
- IEEE 519 compliance with TDD reduction from 15-20% to <5%
- True power factor improvement addressing both displacement and distortion components
- Equipment protection extending operational lifespan by 25-40%
- Energy efficiency optimization reducing system losses by 3-8%
The mathematical relationships and measured case study results demonstrate that properly engineered Active Harmonic Filter solutions provide immediate power quality improvements while delivering substantial long-term operational and financial benefits.
For detailed harmonic distortion standards and compliance requirements, industries can refer to the IEEE Standards Association guidelines available at https://standards.ieee.org.
