Smart Hybrid Active Filter
Solutions:
100 Kvar to 20000 Kvar
Ration:
Active + Passive
Compensation:
Contactor/Thyristor
Types:
Thyristor Switched Module
Voltage:
380V to 690V
Description

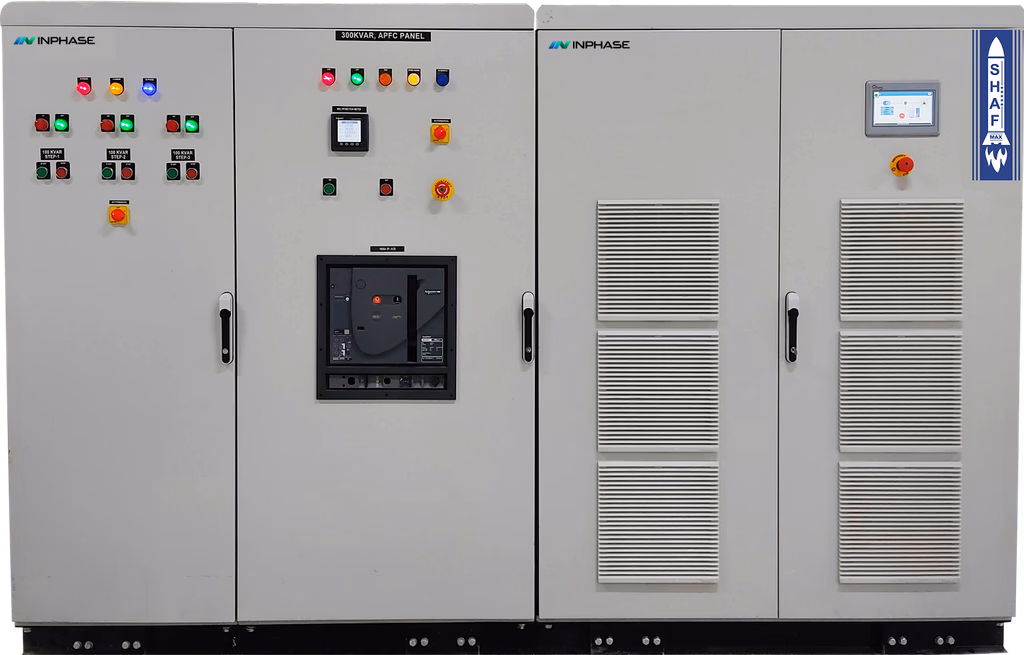

Smart Hybrid Active Filter (SHAF) is an advanced combination of Active & Passive technologies. This is the most cost-effective solution for industries which have installed APFC/RTPFC.
The SHAF solution with high-speed quad core DSP technology works with passive technology to convert the existing compensation into a better & smarter dynamic stepless compensation.
Installation of SHAF comes with the advantages of the InPhase ASTRA filter providing dynamic response, KVAH billing reduction, PF correction & harmonics mitigation in the most cost-effective manner. SHAF is an excellently built filter with efficiency of 98%, low maintenance, quick reaction, and high efficiency, which can be operated remotely and provides smoother voltage profiles.
SHAF is a great solution to operate with the existing detuned APFC/TSC units to achieve enhanced energy management, mitigate harmonics and maintain a good power quality.
01
Accurate Compensation
Delivers precise reactive power correction for optimal power factor at all load conditions.
02
Dual PF Settings
Allows switching between two preset power factor targets for flexible operation.
03
Less Maintenance
Provides superior performance and reliability while keeping overall system costs low.
04
Less Maintenance
Stabilizes voltage levels and reduces fluctuations for healthier electrical equipment.
05
Less Maintenance
Engineered with durable components to minimize upkeep and service requirements.
06
Quick Reaction
Responds instantly to load variations to maintain consistent power quality.
07
Additional Harmonic Control
Enhanced filtering reduces harmonic distortion and improves system efficiency.
08
Monitor from Mobile
Supports mobile-based monitoring for real-time status, alerts, and control.
Textile
Cement
Metro
Chemical
Automotive
Pharma
Textile
Oil and Gas
Cement and Steel
Process Industry
Green Hydrogen Plant
Metro
Desalination Plants
Data Centers
Industries
A Smart Hybrid Active Filter (SHAF) combines active and passive filtering technologies to reduce harmonic distortion, improve power factor, and enhance industrial power quality.
Smart Hybrid Active Filters reduce THD, improve power factor, increase energy efficiency, protect equipment, and help facilities meet power quality standards.
Smart Hybrid Active Filters are widely used in manufacturing plants, steel industries, cement plants, textile mills, hospitals, data centers, and commercial facilities with nonlinear loads.
Yes. Smart Hybrid Active Filters reduce harmonic distortion and support compliance with IEEE 519 recommendations for power quality and harmonic control. For more information, visit https://standards.ieee.org/ieee/519/10677/
