Static VAR Generators (SVGs) have become one of the most effective solutions for improving industrial power factor and reducing avoidable electrical losses. By dynamically supplying or absorbing reactive power, SVGs help maintain a stable power factor under varying load conditions, improving overall electrical system efficiency.
Many industrial facilities focus on reducing energy consumption to lower operating costs. However, even when energy usage appears normal, electricity bills can remain unexpectedly high. One of the most overlooked reasons is poor power factor.
Modern industries rely heavily on motors, pumps, compressors, HVAC systems, conveyors, and automated machinery. These inductive loads require not only useful power (kW) but also reactive power (kVAR), causing the electrical system to draw higher current than necessary. The increased current leads to additional IยฒR losses in cables and transformers, higher equipment temperatures, reduced system capacity, and potential power factor penalty charges from utilities. Over time, these hidden inefficiencies increase operating costs and reduce the overall performance of the electrical network.
Maintaining a high power factor is therefore essential not only for avoiding utility penalties but also for improving energy efficiency, reducing electrical losses, and enhancing equipment reliability.
Understanding the Challenge
“Just as a vehicle consumes more fuel when operating inefficiently, an electrical system requires more current when power factor is low.”
Power factor is the relationship between real power and apparent power in an electrical system. It indicates how effectively electrical power is being converted into useful work.
For a three-phase system:
ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย ย P= โ3โรVรIรcosฯ
Where:
- V = Voltage
- I = Current
- cos ฯ = Power Factor
The closer the power factor is to 1.0, the more efficiently electrical power is utilized.

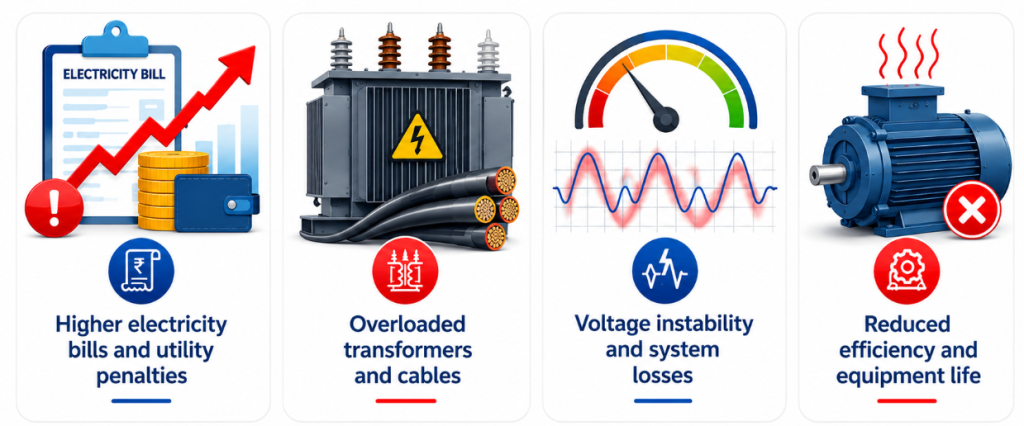

A poor power factor leads to:
The Smart Solution: Static Var Generator (SVG)

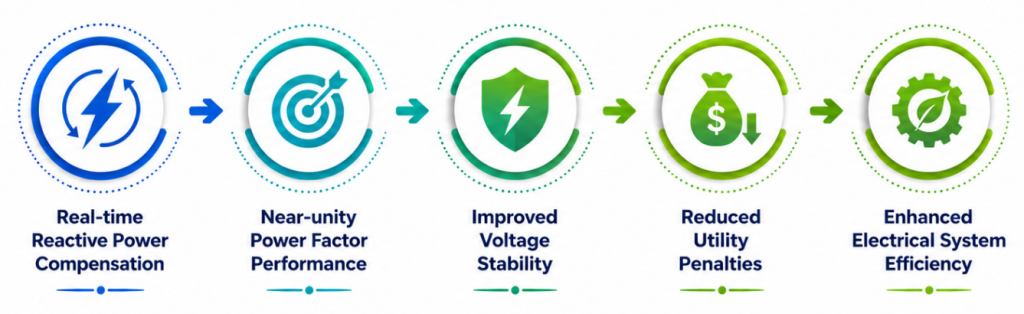

To overcome the challenges associated with poor power factor and rising electrical losses, industries are increasingly adopting Static VAR Generators (SVGs) as an advanced reactive power compensation solution. Unlike conventional capacitor banks, which provide compensation in fixed steps and often struggle to respond to rapidly changing loads, Static VAR Generators deliver continuous and real-time reactive power compensation. By constantly monitoring electrical system conditions, Static VAR Generators can instantly supply or absorb the exact amount of reactive power required, ensuring optimal power factor correction under dynamic operating conditions.
Powered by advanced IGBT-based power electronics technology, Static VAR Generators respond within milliseconds to load variations, making them highly effective in facilities with fluctuating demand from motors, compressors, welding equipment, HVAC systems, conveyors, and other inductive loads. This fast and precise compensation capability helps maintain a near-unity power factor, significantly reducing utility power factor penalties and demand-related charges.
In addition to lowering electricity costs, Static VAR Generators help reduce current flow throughout the electrical network, minimizing IยฒR losses in cables, transformers, and switchgear. The result is improved energy efficiency, reduced equipment heating, enhanced voltage stability, and increased system capacity. By improving overall power quality and supporting reliable plant operation, Static VAR Generators have become a preferred solution for modern industries seeking greater electrical efficiency, operational reliability, and long-term cost savings.Industries often follow the IEEE 519 standard toย maintain better power quality. Learn more about the standard from the IEEE Standards Association: IEEE STANDARDS .
Why InPhase Power Technologies?ย

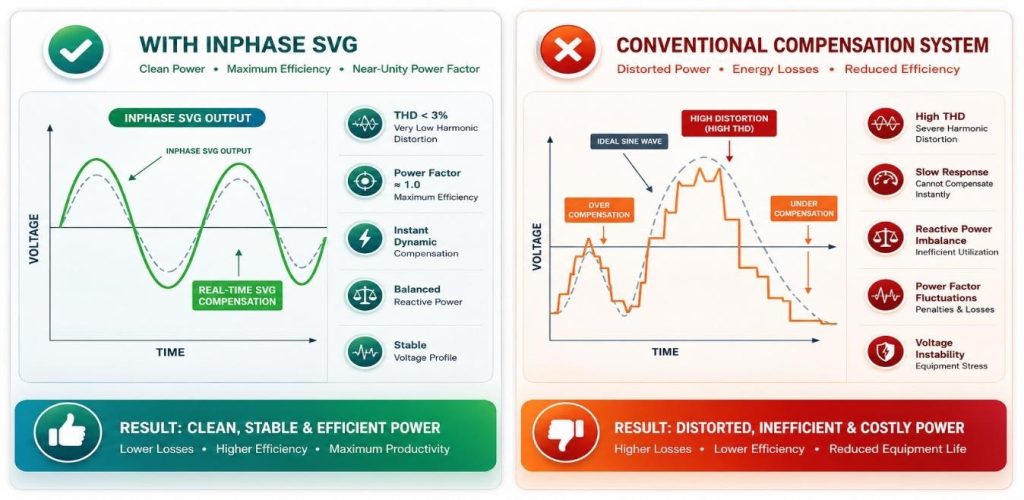

The figure above highlights the difference between InPhase SVG and a conventional compensation system under dynamic load conditions. Conventional systems often struggle to respond quickly to changing reactive power demands, leading to over-compensation, under-compensation, higher harmonic distortion, voltage instability, and increased energy losses. These issues can reduce overall system efficiency and place additional stress on electrical equipment.

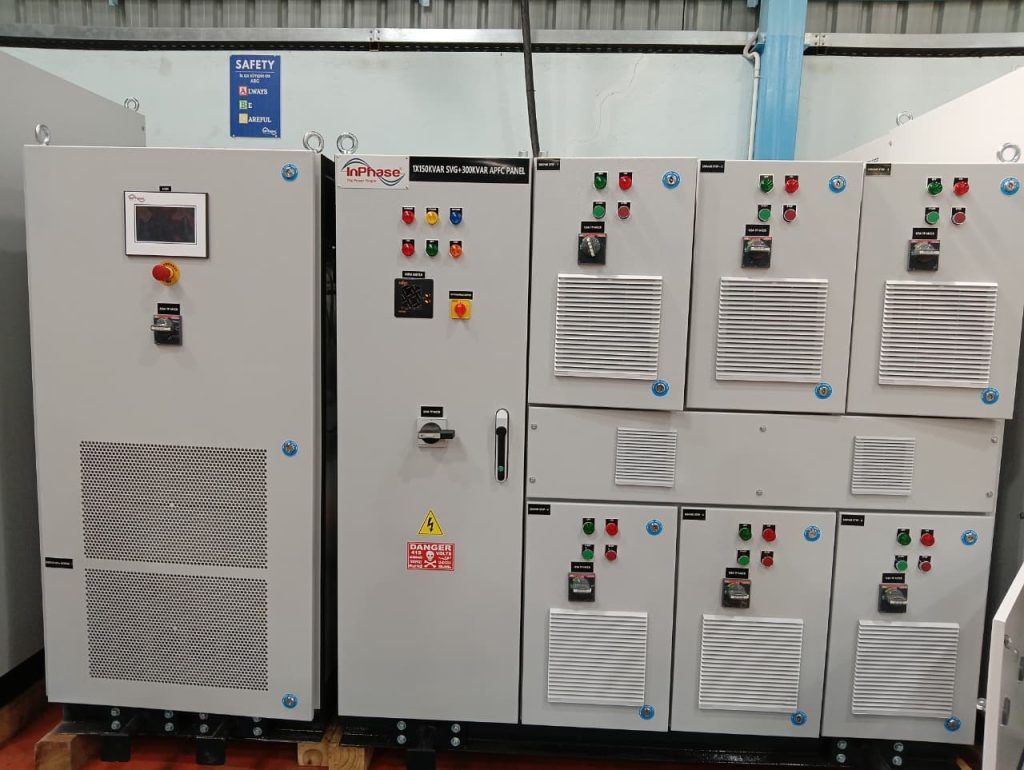

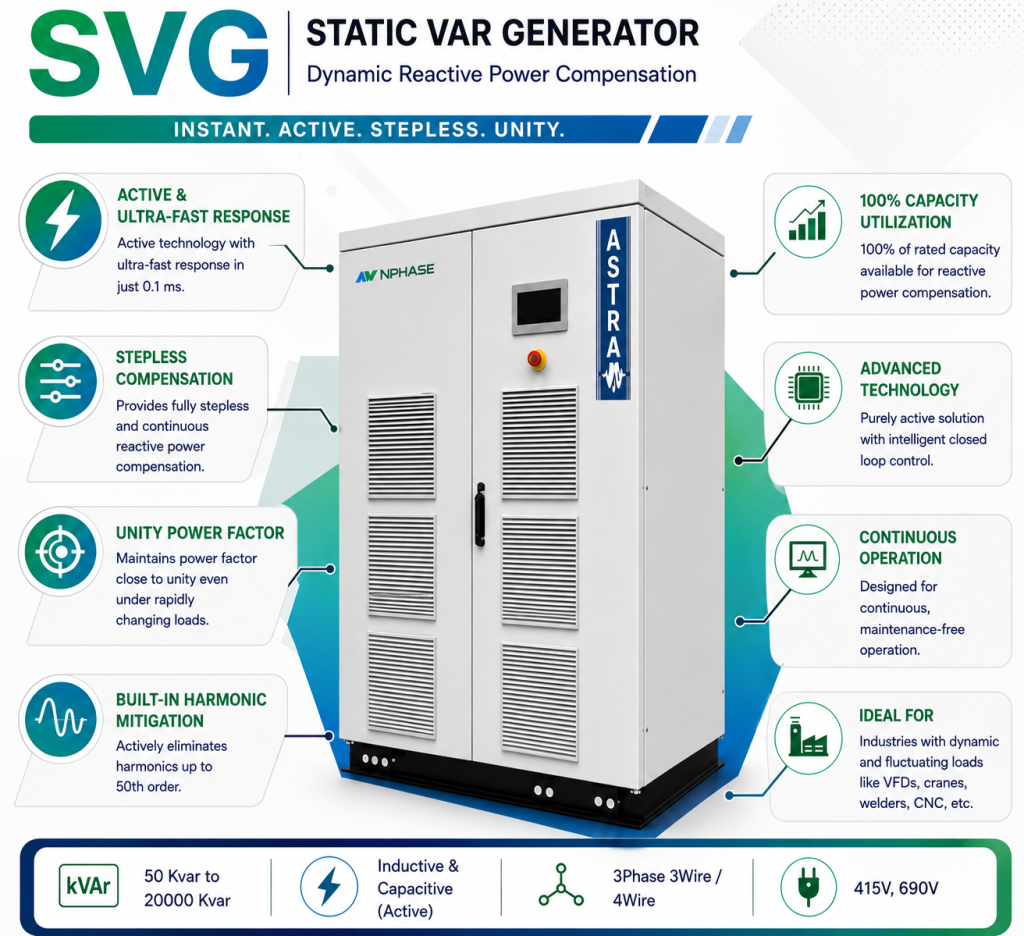

With years of experience in power quality solutions, InPhase Power Technologies offers reliable SVG systems designed for modern industrial applications. Built with advanced 3-Level IGBT technology, InPhase SVGs deliver efficient and accurate reactive power compensation. With an efficiency of over 98%, a response time of less than 0.1 ms, and a power factor above 0.99, they help industries reduce power factor penalties, improve energy efficiency, and maintain stable electrical performance. Backed by strong engineering and dependable support, InPhase SVG solutions provide a simple and effective way to achieve better power quality and lower operating costs.
Learn more about our Static VAR Generator solutions at ย InPhase Power Technologies.
