Active Harmonic Filter are far moving in the industries, do you agree with that?
Modern industries increasingly rely on power electronic devices and automation equipment to improve productivity and energy efficiency.
Active Harmonic Filter technology has become an essential solution for modern facilities facing harmonic-related power quality issues. By continuously monitoring and compensating harmonic currents in real time, an Active Harmonic Filter improves system efficiency, protects equipment, and enhances operational reliability.
While these technologies offer significant operational benefits, they also introduce a major power quality challenge: harmonic distortion.

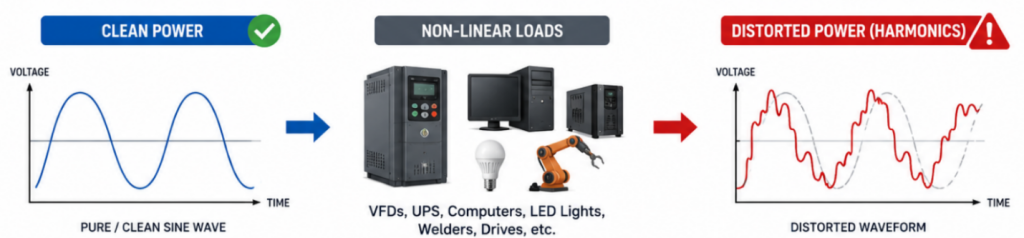

Understanding Harmonics: A Simple Explanation
Harmonics are noises in electrical system generated by non-linear loads.
Under ideal conditions, electrical current follows a smooth sinusoidal waveform. However, power electronic devices draw current in short pulses rather than smooth waves, creating harmonic currents that distort the electrical system.
Consequences of Harmonic Distortion
Excessive harmonic distortion affects both operational reliability and energy efficiency. It adversely effect the machine operation and that will does not follow the regulatory standards(IEEE519 , IEEE 1453, IEC, IEEE1159.)

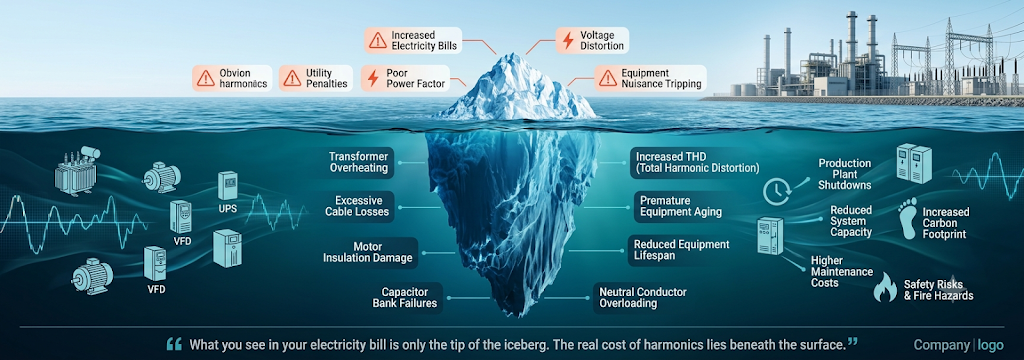

“What you see in your electricity bill is only the tip of the iceberg. The real cost of harmonics lies beneath the surface”
Harmonics effect the PF indirectly. True power factor is the product of displacement power factor and distorted power factor
Why Are Industries Moving Toward Active Harmonic Filters?
To address harmonic distortion, industries require intelligent harmonic mitigation solutions capable of adapting to changing load conditions.
This is where Active Harmonic Filters (AHFs) play a critical role.
Unlike traditional passive filters that target fixed frequencies, An Active Harmonic Filter (AHF) is an advanced power quality device that actively monitors an electrical system and dynamically injects equal-and-opposite harmonic currents to cancel out distortions caused by non-linear loads

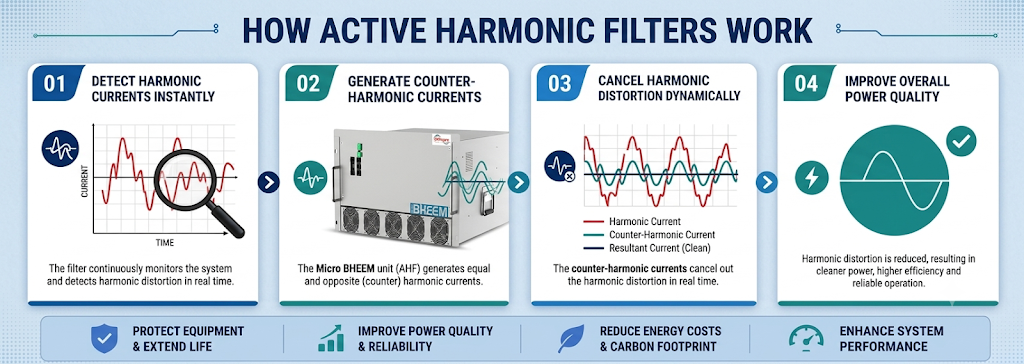

How Active Harmonic Filters Work
This real-time compensation ensures optimal performance even in facilities with rapidly varying electrical loads.
Benefits of Active Harmonic Filters
Active Harmonic Filters help industries achieve both technical and financial benefits by improving electrical system efficiency.
InPhase Active Harmonic Filter Technology
At InPhase Power Technologies, Active Harmonic Filters are engineered as intelligent power quality solutions designed for demanding industrial environments.

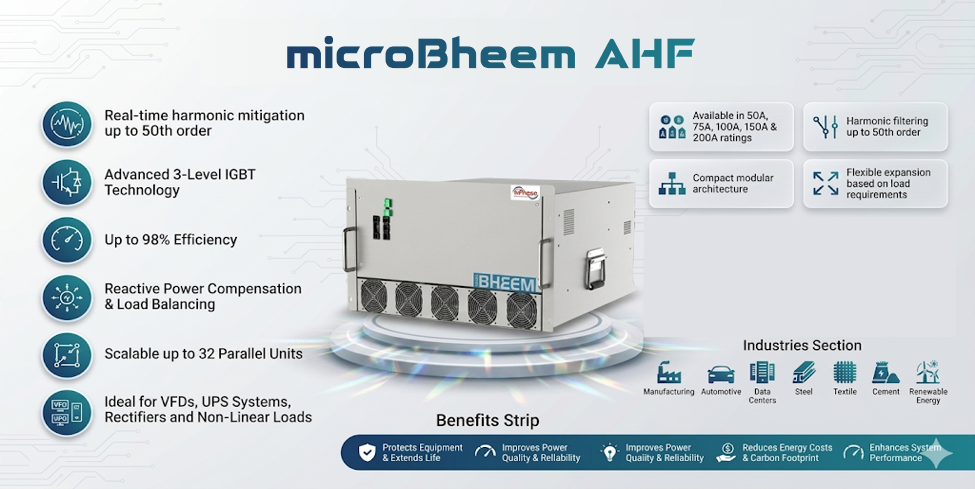

In the whole AHF category MicroBheem AHF is a flagship innovative modular product of InPhase Power Technologies, which is developed by the inhouse R&D team of InPhase
As industries continue adopting VFDs, automation systems, UPS infrastructure, and renewable energy technologies, harmonic distortion will remain a growing challenge.
