Active Harmonic Filters Reduce Harmonics by continuously monitoring electrical networks and injecting compensating currents that cancel harmonic distortion in real time. Modern industrial facilities rely heavily on variable frequency drives (VFDs), UPS systems, rectifiers, welding machines, and other non-linear loads that generate harmonics. These harmonics can lead to overheating, equipment failures, reduced efficiency, and increased operating costs.
Understanding how Active Harmonic Filters Reduce Harmonics is essential for industries seeking reliable operations, improved power quality, and compliance with IEEE 519 standards.
What Are Active Harmonic Filters?
An Active Harmonic Filter (AHF) is a power electronic device designed to detect and eliminate harmonic currents generated by non-linear electrical loads.
Unlike conventional passive filters, Active Harmonic Filters dynamically adapt to changing load conditions and provide real-time harmonic mitigation.

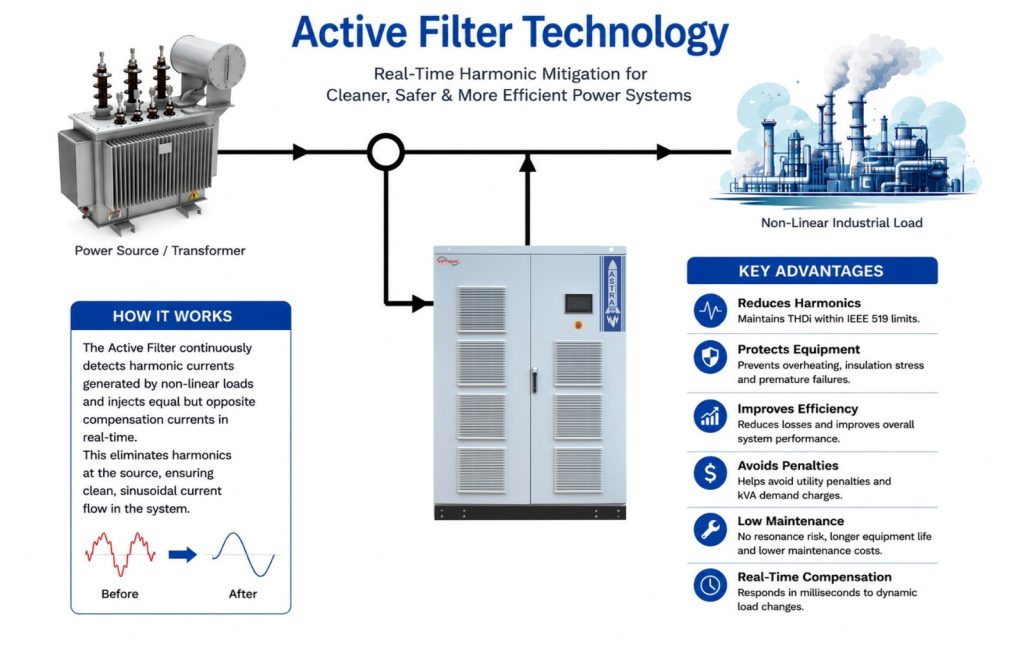

How Active Harmonic Filters Work
The filter continuously:
- Measures load current
- Identifies harmonic components
- Calculates compensation requirements
- Injects equal and opposite harmonic currents
- Maintains clean sinusoidal waveforms
This process ensures effective harmonic cancellation across multiple harmonic orders.
How Active Harmonic Filters Reduce Harmonics in Industrial Power Systems
Real-Time Harmonic Monitoring
One reason Active Harmonic Filters Reduce Harmonics effectively is their ability to continuously monitor current and voltage waveforms.
The system instantly detects:
- 5th harmonics
- 7th harmonics
- 11th harmonics
- 13th harmonics
- Higher-order harmonics
Continuous monitoring enables immediate corrective action before harmonics affect equipment performance.
Dynamic Harmonic Compensation
Traditional filters operate at fixed frequencies, while AHFs provide dynamic compensation.
Because Active Harmonic Filters Reduce Harmonics dynamically, they can adapt to changing load conditions and maintain optimal performance throughout production cycles.
Compensation Across Multiple Harmonic Orders
Industrial facilities often experience multiple harmonic frequencies simultaneously.
Active Harmonic Filters can compensate:
- Lower-order harmonics
- Higher-order harmonics
- Interharmonics
- Variable harmonic conditions
This makes them highly effective in modern industrial environments.
Why Harmonic Reduction Is Important

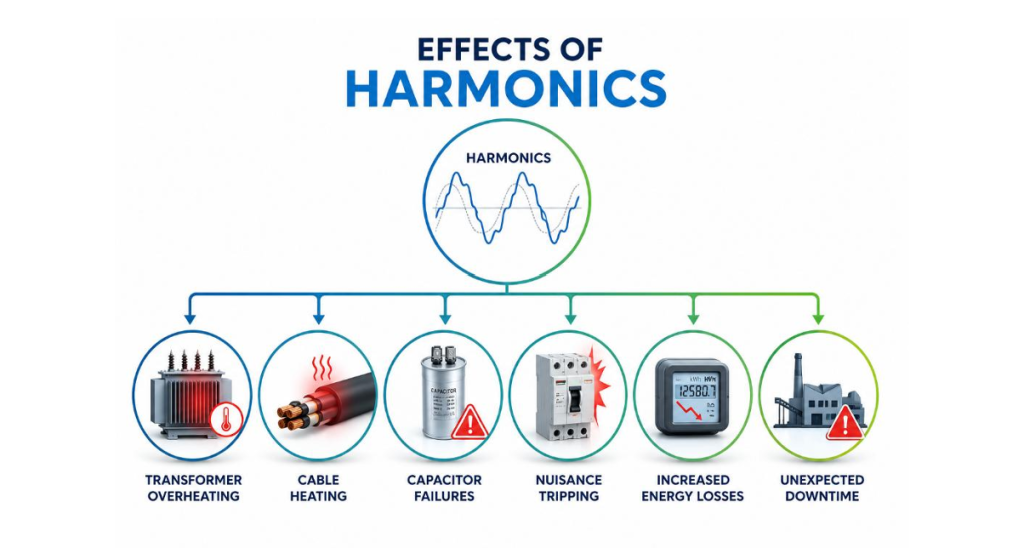

Harmonics negatively affect electrical systems in several ways.
Equipment Overheating
Excessive harmonics increase current flow and generate additional heat in:
- Transformers
- Motors
- Generators
- Cables
Because Active Harmonic Filters Reduce Harmonics, they help prevent overheating and extend equipment life.
Reduced Energy Efficiency
Harmonics increase electrical losses throughout the power distribution network.
Benefits include:
- Lower energy losses
- Reduced electricity costs
- Improved system efficiency
- Better equipment utilization
Nuisance Tripping
Harmonic distortion can cause protective devices to operate unnecessarily.
Reducing harmonics improves:
- Process continuity
- Equipment reliability
- Production uptime
Applications Where Active Harmonic Filters Reduce Harmonics
Manufacturing Plants
Manufacturing facilities use numerous VFD-driven machines that generate harmonic distortion.
Automotive Industry
Robotic production lines and automation systems benefit from harmonic mitigation.
Data Centers
Critical IT infrastructure requires stable and clean electrical power.
Steel Plants
Electric arc furnaces and rolling mills create significant harmonic currents.
Cement Plants
Large motor loads and process equipment demand effective harmonic control.
Pharmaceutical Facilities
Sensitive production equipment requires high-quality power supply conditions.
Benefits of Active Harmonic Filters Reduce Harmonics
Improved Power Quality
AHFs maintain cleaner voltage and current waveforms.
Enhanced Equipment Protection
Electrical equipment experiences less thermal stress and longer service life.
IEEE 519 Compliance
One of the primary reasons industries install AHFs is to meet IEEE 519 harmonic limits.
Reduced Maintenance Costs
Lower harmonic distortion reduces wear on electrical infrastructure.
Better Power Factor Performance
Many Active Harmonic Filters also support reactive power compensation.
Increased Reliability
Stable electrical systems improve operational performance and reduce downtime.
Lower Operating Costs
Reduced losses and improved efficiency contribute to measurable cost savings.
Why Choose InPhase Active Harmonic Filters?
InPhase Power Technologies provides advanced Active Harmonic Filters designed specifically for industrial power quality applications.
Key features include:
- Real-time harmonic compensation
- Fast response time
- Modular architecture
- IEEE 519 compliance support
- Advanced monitoring capabilities
- High system efficiency
- Industrial-grade reliability
Our solutions help industries maintain superior power quality while reducing operational costs.
Conclusion
Active Harmonic Filters Reduce Harmonics by detecting and compensating for harmonic currents in real time, making them one of the most effective solutions for industrial power quality improvement. By reducing Total Harmonic Distortion (THD), protecting critical equipment, improving energy efficiency, and supporting IEEE 519 compliance, Active Harmonic Filters deliver significant technical and financial benefits.
For industries facing harmonic distortion challenges, InPhase Active Harmonic Filters provide a proven solution for achieving reliable, efficient, and compliant electrical system performance.
