Harmonic Study for Industrial Facilities is essential for identifying power quality issues such as harmonic distortion, load unbalance, excessive neutral currents, and transformer overheating in modern industrial plants. As industries increasingly adopt Variable Frequency Drives (VFDs), UPS systems, welding machines, CNC equipment, and other non-linear loads, conducting a detailed harmonic study helps detect electrical disturbances before they affect system reliability, energy efficiency, and equipment performance.
This Harmonic Study for Industrial Facilities presents a real-world case where an InPhase Active Harmonic Filter (AHF) successfully reduced Total Harmonic Distortion (THD), corrected load unbalance, improved power factor, and achieved IEEE 519 compliance in a manufacturing facility. By comparing electrical system performance before and after installation, this case study demonstrates how advanced harmonic mitigation solutions enhance power quality, improve operational reliability, and support long-term industrial productivity.
Harmonic Study for Industrial Facilities: Why It Matters
A Harmonic Study for Industrial Facilities is essential for identifying electrical issues that affect power quality, equipment reliability, and energy efficiency. Industrial facilities with VFDs, rectifiers, welding machines, and other non-linear loads are highly susceptible to harmonic distortion. Conducting a detailed harmonic study helps engineers evaluate Total Harmonic Distortion (THD), voltage distortion, load unbalance, neutral current, and power factor, enabling the selection of effective harmonic mitigation solutions.https://ieeexplore.ieee.org/document/9586755
A comprehensive Harmonic Study for Industrial Facilities provides valuable insights into the electrical network and helps industries improve system performance. The key benefits include:
- Identifies harmonic distortion sources.
- Reduces Total Harmonic Distortion (THD).
- Improves power quality and system reliability.
- Prevents transformer and motor overheating.
- Optimizes power factor and energy efficiency.
- Supports IEEE 519 compliance.
- Reduces maintenance costs and unplanned downtime.
Understanding the Challenge
Every Active Harmonic Filter Case Study begins with understanding the root cause of power quality problems. In this industrial facility, increasing harmonic distortion, load unbalance, excessive neutral currents, and poor power factor were affecting electrical system performance. A detailed power quality assessment identified high Total Harmonic Distortion (THD) and phase imbalance caused by non-linear loads such as VFDs, welding machines, and automation equipment. These issues resulted in transformer overheating, frequent breaker tripping, and reduced equipment reliability, making an effective harmonic mitigation solution essential.
Customer Profile
Industry: Manufacturing Plant
Connected Load: Multiple VFD-driven motors, CNC machines, welding equipment, and automation systems
Supply Voltage: 415V, 50Hz
Observed Power Quality Issues
The customer experienced several operational challenges:
- High current harmonic distortion
- Significant phase load imbalance
- Transformer overheating
- Frequent nuisance tripping of breakers
- Increased maintenance requirements
- Poor utilization of electrical infrastructure
A detailed power quality audit revealed the following:
| Parameter | Before Installation |
|---|---|
| Current THD | 24% |
| Voltage THD | 7.2% |
| Load Unbalance | 18% |
| Neutral Current | High |
| Power Factor | 0.88 |
These values exceeded recommended operating levels and posed a risk to long-term plant reliability.
Root Cause Analysis
The investigation identified three major causes:
Harmonics from Non-Linear Loads
VFDs and rectifier-based equipment generated significant 5th, 7th, and higher-order harmonics, increasing system losses and causing waveform distortion.
Load Unbalance Across Phases
Uneven distribution of single-phase and variable loads created current imbalance between phases.
Excessive Neutral Currents
Triplen harmonics accumulated in the neutral conductor, resulting in additional heating and energy losses.
The InPhase Solution
After conducting a site survey and harmonic analysis, InPhase recommended installing an Active Harmonic Filter with load unbalance compensation capability.

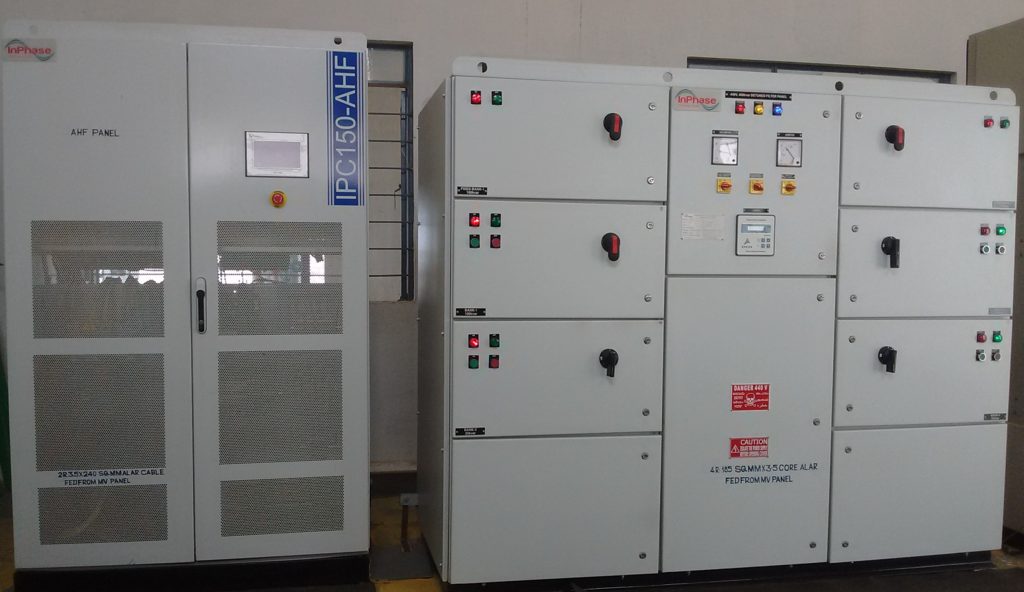

Installed System
- InPhase Active Harmonic Filter
- 100A Compensation Capacity
- Dynamic Harmonic Mitigation
- Real-Time Load Balancing
- DSP-Based Intelligent Controller
- Modular Expansion Capability
Key Functions
This Active Harmonic Filter Case Study demonstrates how the InPhase Active Harmonic Filter delivers comprehensive power quality improvement through intelligent real-time compensation. Its advanced control technology continuously detects electrical disturbances and instantly mitigates harmonic distortion, corrects load unbalance, and reduces neutral currents. These key functions improve power factor, enhance system reliability, and help industrial facilities achieve IEEE 519 compliance while ensuring efficient and stable electrical system operation.
Harmonic Compensation
The Active Harmonic Filter continuously monitors harmonic currents and injects equal and opposite compensation currents.
Load Unbalance Compensation
The system dynamically balances phase currents, reducing phase-to-phase current variations.
Neutral Current Reduction
By mitigating triplen harmonics and correcting imbalance, neutral conductor loading is significantly reduced.

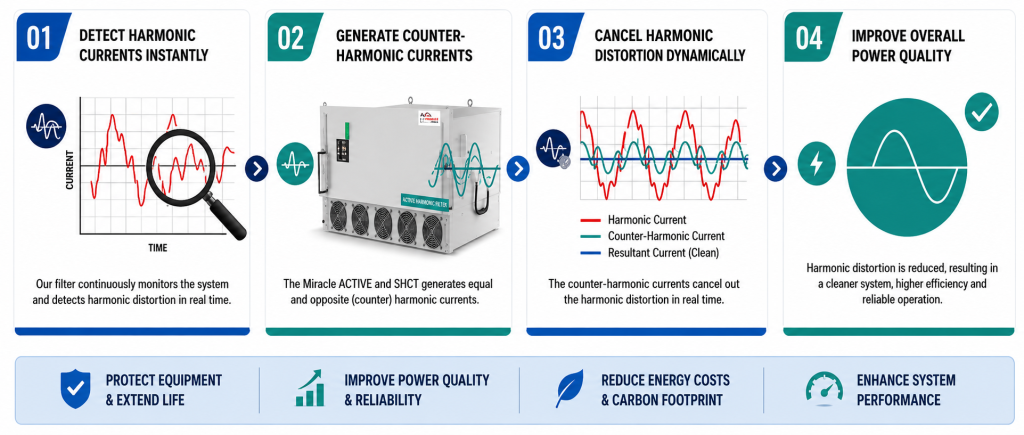

How the InPhase AHF Works
The system operates in four stages:
- Real-time current measurement
- Harmonic and imbalance analysis
- Generation of compensating currents
- Injection of correction currents into the network
This process occurs within milliseconds, ensuring continuous power quality improvement under changing load conditions.https://modular.inphase.in/#models
Results Achieved
Following installation and commissioning, measurements were taken under normal operating conditions.
| Parameter | Before | After |
| Current THD | 24% | 4.2% |
| Voltage THD | 7.2% | 2.8% |
| Load Unbalance | 18% | 2.5% |
| Neutral Current | High | Reduced Significantly |
| Power Factor | 0.88 | 0.99 |
Key Benefits Realized
✔ THD reduced below IEEE 519 limits
✔ Improved phase current balance
✔ Reduced transformer heating
✔ Lower neutral conductor loading
✔ Enhanced equipment reliability
✔ Reduced downtime
✔ Improved power factor
✔ Better utilization of electrical infrastructure
✔ Reduced maintenance costs
Why Load Unbalance Compensation Matters
Load imbalance is often overlooked but can have a major impact on electrical system performance.
Common consequences include:
- Motor overheating
- Reduced motor efficiency
- Increased transformer losses
- Higher energy consumption
- Voltage imbalance
- Reduced equipment life
InPhase Active Harmonic Filters provide both harmonic mitigation and load balancing in a single solution, offering comprehensive power quality improvement.
Benefits of InPhase Active Harmonic Filters
Real-Time Dynamic Compensation
Responds instantly to changing load conditions.
Harmonic Mitigation
Reduces harmonic distortion and improves waveform quality.
Load Balancing
Maintains balanced phase currents and improves system efficiency.
IEEE 519 Compliance
Helps facilities achieve recommended harmonic limits.
Modular Design
Easy to expand as facility loads increase.
Future-Ready Technology
Supports smart manufacturing, Industry 4.0, and modern automation systems.
Industries That Benefit
InPhase Active Harmonic Filters are widely used in:
- Manufacturing Plants
- Automotive Industries
- Steel Plants
- Cement Industries
- Data Centers
- Commercial Buildings
- Hospitals
- Textile Industries
- Water Treatment Facilities
Solution Impact
As industrial facilities continue to adopt automation and power-electronic equipment, maintaining high power quality becomes increasingly critical. Harmonics and load imbalance can significantly impact operational efficiency, reliability, and equipment lifespan.
This case study demonstrates how the InPhase Active Harmonic Filter successfully reduced harmonic distortion from 24% to 4.2%, improved load balance, minimized neutral currents, and enhanced overall electrical system performance.
By combining harmonic mitigation and load unbalance compensation in a single intelligent solution, InPhase helps industries achieve cleaner power, improved efficiency, and long-term operational reliability.
InPhase Power Active Harmonic Filter and Load Unbalance Compensation provides a comprehensive solution for harmonic mitigation, load balancing, and power quality improvement. By reducing THD and correcting phase imbalance, industries can achieve greater efficiency, improved reliability, and long-term operational savings.https://modular.inphase.in/
Improve Your Power Quality Today
✔ Reduce Harmonics
✔ Correct Load Unbalance
✔ Improve Power Factor
✔ Achieve IEEE 519 Compliance
✔ Protect Critical Equipment
Contact InPhase Energy for a detailed power quality assessment and customized Active Harmonic Filter solution.A Harmonic Study for Industrial Facilities is essential for identifying power quality issues before they lead to equipment failures, production losses, and increased maintenance costs. A Harmonic Study for Industrial Facilities is widely used across manufacturing plants, steel industries, cement plants, data centers, pharmaceutical facilities, and commercial buildings.
Frequently Asked Questions (FAQs)
1. What is a Harmonic Study for Industrial Facilities?
A Harmonic Study for Industrial Facilities is a detailed analysis of an electrical power system to identify harmonic distortion, voltage distortion, load imbalance, and other power quality issues. It helps engineers recommend suitable harmonic mitigation solutions to improve system performance and reliability.
2. Why is a Harmonic Study for Industrial Facilities important?
A Harmonic Study for Industrial Facilities helps detect power quality problems before they cause transformer overheating, equipment failures, excessive neutral currents, and production downtime. It also supports compliance with IEEE 519 standards and improves overall energy efficiency.
3. When should a Harmonic Study for Industrial Facilities be conducted?
A Harmonic Study for Industrial Facilities should be performed when new non-linear loads such as VFDs, UPS systems, or welding machines are installed, when production capacity is expanded, or when recurring power quality problems are observed.
4. What equipment is used in a Harmonic Study for Industrial Facilities?
A Harmonic Study for Industrial Facilities typically uses power quality analyzers, harmonic analyzers, digital meters, and monitoring software to measure Total Harmonic Distortion (THD), voltage, current, power factor, frequency, and load imbalance.
