Understanding Power Quality Challenges in Modern Electrical Systems
Active Harmonic Filter vs Passive Filter is one of the most important comparisons for industries looking to improve power quality and reduce harmonic distortion. As modern facilities increasingly rely on VFDs, UPS systems, rectifiers, and other non-linear loads, choosing the right harmonic mitigation solution has become essential for maintaining electrical system reliability and efficiency.
Poor power quality caused by harmonic distortion can result in transformer overheating, capacitor failures, nuisance tripping, increased energy costs, equipment malfunction, and unplanned production downtime. Understanding the differences between an Active Harmonic Filter vs Passive Filter helps engineers and facility managers select the most effective solution based on load conditions, system requirements, and long-term operational goals.
Poor power quality can lead to equipment failures, increased energy costs, production downtime, and reduced operational efficiency. To overcome these challenges, industries are adopting Active Harmonic Filters (AHFs) as a reliable and future-ready solution.
Before selecting a mitigation solution, understanding the differences between an Active Harmonic Filter vs Passive Filter helps industries evaluate performance, flexibility, installation cost, and long-term return on investment.
Common Power Quality Challenges
Harmonics from Non-Linear Loads
Non-linear loads draw current in irregular patterns, creating harmonic currents that distort voltage and current waveforms.
Impact:
Transformer overheating
Excessive neutral currents
Increased power losses
Equipment malfunction
Reduced system efficiency
Voltage Fluctuations
Voltage sags, swells, and fluctuations can disrupt sensitive equipment and affect process stability.
Impact:
Production interruptions
PLC and CNC machine faults
Reduced equipment lifespan
Unexpected downtime
Equipment Overheating
Harmonics and load imbalances increase electrical stress on transformers, cables, motors, and switchgear.
Impact:
Higher maintenance costs
Premature equipment failure
Reduced operational reliability

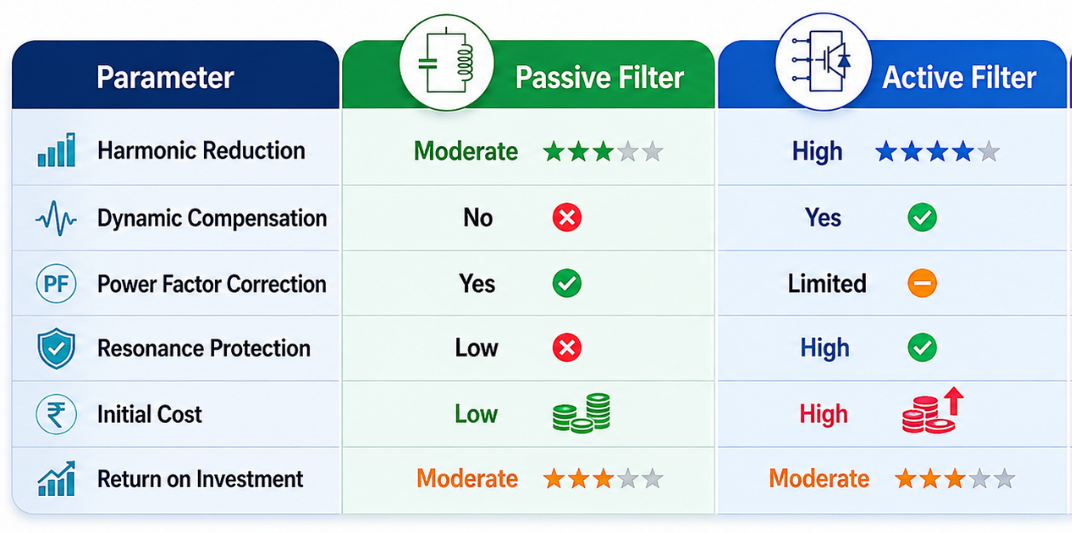

Active Harmonic Filter vs Passive Filter:A comparison
How Active Harmonic Filters Solve Power Quality Problems
In an Active Harmonic Filter vs Passive Filter comparison, Active Harmonic Filters continuously adapt to changing load conditions, whereas Passive Filters are designed for fixed harmonic frequencies.
Real-Time Harmonic Compensation
Active Harmonic Filters continuously monitor electrical currents and instantly inject equal and opposite harmonic currents to eliminate distortion.
Benefits:
Reduces Total Harmonic Distortion (THD)
Improves waveform quality
Maintains clean power throughout the facility
Voltage Waveform Stabilization
By minimizing harmonic disturbances, Active Harmonic Filters help maintain a stable and near-sinusoidal voltage waveform.
Benefits: Improved voltage stability
Enhanced system performance
Reduced equipment stress
Protection for Sensitive Devices
Critical equipment such as PLCs, CNC machines, automation systems, UPS units, and data center infrastructure require clean and stable power.
Benefits: Increased equipment reliability
Reduced downtime
Extended equipment life
How Active Harmonic Filters Work
The InPhase Active Harmonic Filter operates through a four-step process:
Detect harmonic distortion in real time
Analyze harmonic frequencies and magnitudes
Inject compensating current into the system
Restore clean and stable power
This intelligent compensation process ensures optimal power quality under varying load conditions.
Case Study: Industrial Plant Harmonic Reduction
Challenge
A manufacturing facility experienced:
THD level of 15%
Frequent equipment trips
Transformer overheating
Increased maintenance costs
Solution
The facility installed an InPhase Active Harmonic Filter designed to mitigate harmonics generated by VFD-driven processes.
Results
Before Installation
THD: 15%
After Installation
THD: Less than 5%
Benefits Achieved
Improved power quality
Reduced downtime
Enhanced equipment reliability
Lower maintenance costs
Compliance with IEEE 519 standards
Key Benefits of InPhase Active Harmonic Filters
Real-time harmonic mitigation
THD reduction below 5%
Improved power factor
Reduced energy losses
Enhanced equipment lifespan
Prevention of transformer and cable overheating
Compact modular design
IEEE 519 compliance support
Easy integration into existing systems
Industries Benefiting from Active Harmonic Filters
Manufacturing Plants
Commercial Buildings
Hospitals
Data Centers
Automotive Industries
Textile Industries
Utilities and Infrastructure Projects
Why Choose InPhase Active Harmonic Filters?
If you’re comparing Active Harmonic Filter vs Passive Filter, InPhase Active Harmonic Filters provide superior harmonic mitigation, dynamic compensation, and IEEE 519 compliance for modern industrial applications.
InPhase Energy provides advanced Active Harmonic Filter solutions engineered for industrial and commercial applications. Our intelligent DSP-based technology ensures superior harmonic mitigation, reliable operation, and compliance with international power quality standards.
Whether you are facing harmonic distortion, voltage instability, or equipment overheating, InPhase offers customized solutions to improve electrical system performance and reliability.
Improve Your Power Quality Today
Don’t let harmonics and power quality issues affect your operations.
Eliminate Harmonics
Improve Energy Efficiency
Protect Critical Equipment
Achieve IEEE 519 Compliance
Maintaining compliance with IEEE 519 standards is essential for ensuring reliable electrical system performance. Excessive harmonic distortion can result in penalties, equipment failures, increased maintenance costs, and reduced energy efficiency. Active Harmonic Filters help industries maintain Total Harmonic Distortion (THD) within recommended limits by continuously monitoring and compensating for harmonics in real time. This not only improves power quality but also enhances equipment lifespan and supports regulatory compliance. For facilities operating critical processes, achieving IEEE 519 compliance is an important step toward improving operational reliability and reducing long-term costs.
Learn more about our Active Harmonic Filter Solutions.
Explore our Static Var Generator (SVG) solutions for power factor correction.
Read our guide on Power Quality Solutions.
