InPhase Hybrid Filter Specifications are an important consideration for industries seeking advanced power quality solutions that can simultaneously improve power factor, reduce harmonic distortion, and optimize electrical system efficiency. As industrial facilities increasingly adopt Variable Frequency Drives (VFDs), induction furnaces, UPS systems, renewable energy converters, and automated production equipment, electrical networks experience higher levels of reactive power demand, harmonic distortion, and voltage instability.
Traditional capacitor banks and passive filters often struggle to meet the dynamic requirements of modern electrical systems. While capacitor banks primarily improve power factor and passive filters suppress specific harmonic frequencies, neither technology alone can provide comprehensive power quality management under rapidly changing load conditions.
To address these challenges, InPhase Hybrid Filter introduces an intelligent Smart Hybrid Active Filter (SHAF) architecture that combines Real-Time Power Factor Correction (RTPFC) with a Passive Harmonic Filter. This innovative combination delivers dynamic reactive power compensation, harmonic mitigation, voltage stabilization, and improved system efficiency in a single integrated solution. Understanding the InPhase Hybrid Filter Specifications of this advanced technology helps engineers, consultants, and facility managers select the right solution for reliable industrial power quality.
Why Industries Need Hybrid Filters
Modern industrial electrical systems contain a large number of nonlinear and inductive loads that continuously affect power quality.
Common sources include:
- Variable Frequency Drives (VFDs)
- UPS Systems
- Rectifiers
- Electric Arc Furnaces
- Welding Machines
- Compressors
- HVAC Systems
- Renewable Energy Inverters
- CNC Machines
- Large Induction Motors
These loads generate harmonic currents while simultaneously demanding reactive power, resulting in:
- Poor Power Factor
- Harmonic Distortion
- Transformer Overheating
- Cable Heating
- Voltage Fluctuations
- Higher Energy Losses
- Increased KVAH Billing
- Reduced Equipment Life
- Utility Penalties
These challenges highlight the need for an intelligent hybrid solution capable of addressing both harmonics and reactive power simultaneously.
What is the InPhase Smart Hybrid Active Filter?

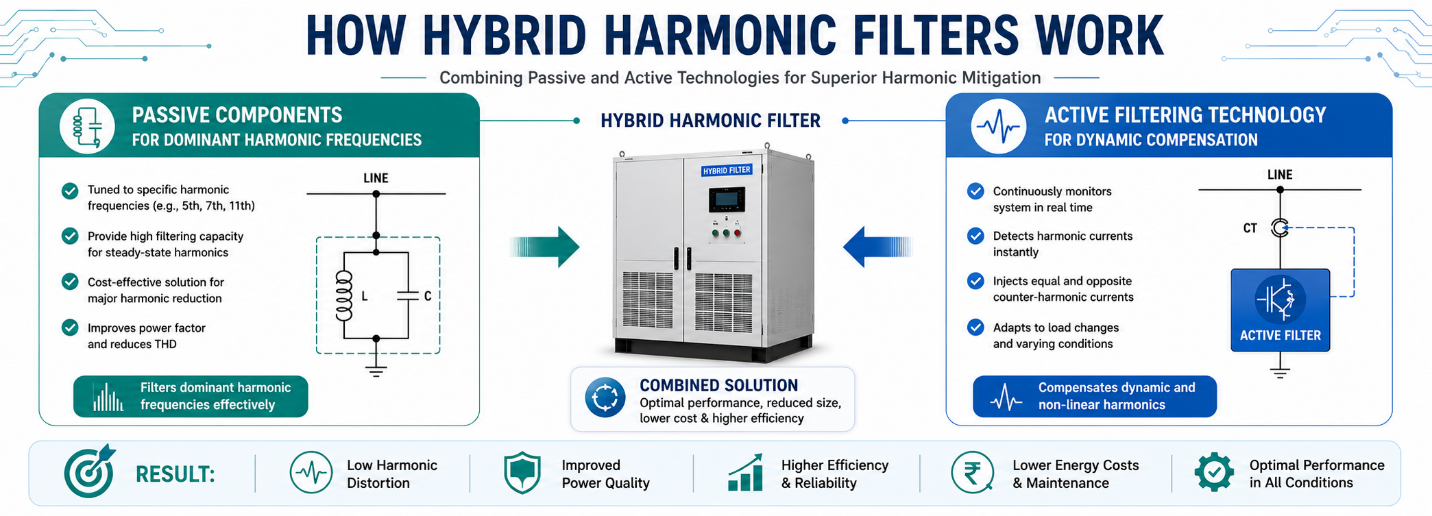

Unlike conventional hybrid filters, the InPhase Smart Hybrid Active Filter (SHAF) combines Real-Time Power Factor Correction (RTPFC) with a specially engineered Passive Harmonic Filter.
Instead of relying entirely on active compensation, SHAF intelligently distributes compensation tasks between its two major components.
The Passive Harmonic Filter performs:
- Bulk reactive power compensation
- Harmonic absorption
- Reduction of dominant harmonic frequencies
The Real-Time Power Factor Correction (RTPFC) performs:
- Dynamic reactive power compensation
- Continuous power factor correction
- Fast response to load variations
- Prevention of over-compensation
- Intelligent capacitor switching optimization
This architecture provides superior performance while significantly reducing overall system cost compared to fully active solutions.

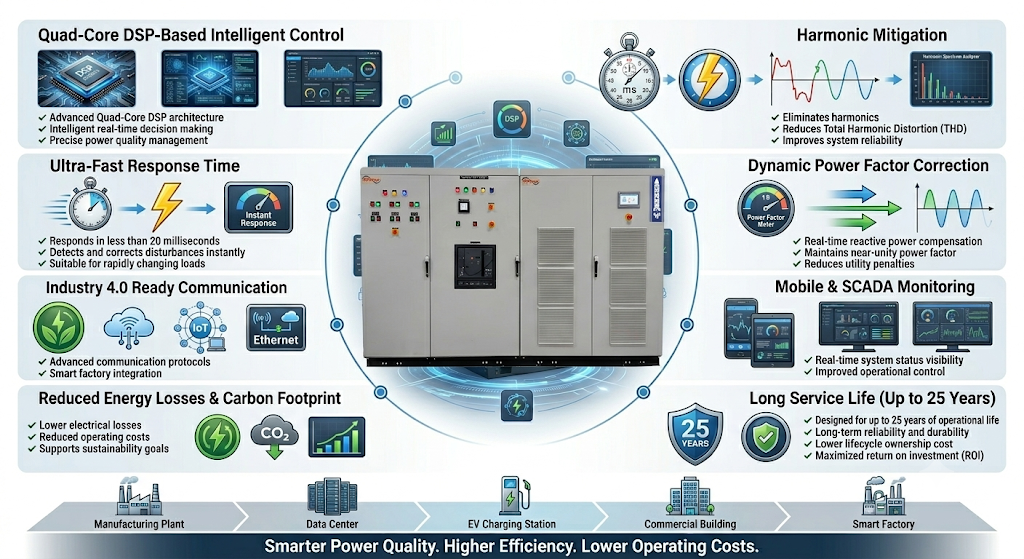

InPhase Hybrid Filter Specifications
Selecting the correct Hybrid Filter Specifications is essential for ensuring optimal system performance.
Reactive Power Compensation
The InPhase SHAF provides dynamic reactive power compensation based on real-time load conditions.
Typical Capacity
- 50 kVAR
- 100 kVAR
- 250 kVAR
- 500 kVAR
- Up to 2 MVAR

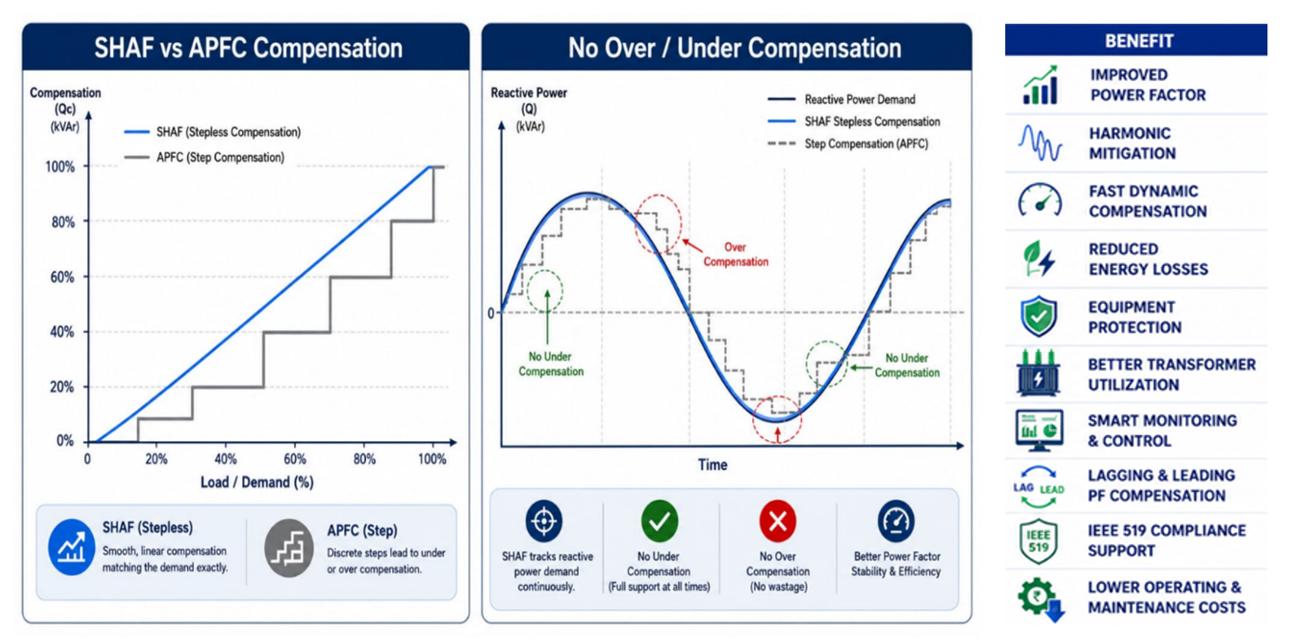

The RTPFC continuously adjusts reactive power output to maintain near-unity power factor.
Harmonic Mitigation
The Passive Harmonic Filter effectively suppresses dominant harmonic frequencies while working alongside RTPFC.
Typical Performance
- Harmonic mitigation up to the 50th order
- Reduced Total Harmonic Distortion (THD)
- IEEE 519 compliance support
Response Time
One of the major Hybrid Filter Specifications is response speed.
The RTPFC controller operates with a response time of
Less than 20 milliseconds
This ensures immediate compensation during dynamic load variations.
System Efficiency
High conversion efficiency minimizes internal losses.
Typical Efficiency
Greater than 98%
This improves energy savings while reducing operating costs.
Power Factor Improvement
The intelligent RTPFC continuously regulates reactive power.
Typical Performance
- Power Factor > 0.99
- Dynamic leading and lagging compensation
- Reduced KVAH billing
Operating Voltage
The system supports standard industrial voltages including:
- 415 V
- 525 V
- 690 V
making it suitable for a wide range of industrial applications.
Communication Interface
Modern industrial facilities require continuous monitoring.
The InPhase SHAF supports:
- Modbus RTU
- Modbus TCP/IP
- Ethernet
- RS-485
allowing seamless integration with SCADA and Energy Management Systems.
Cooling System
The system incorporates intelligent air cooling with automatic temperature monitoring to ensure reliable operation under continuous industrial loading.
Protection Features
The InPhase Smart Hybrid Active Filter includes comprehensive protection functions:
- Over-voltage Protection
- Under-voltage Protection
- Over-current Protection
- Over-temperature Protection
- Short-circuit Protection
- Phase Loss Protection
These features improve system reliability and reduce maintenance requirements.
Compliance Standards
The InPhase SHAF is designed to support compliance with:
- IEEE 519
- IEC 61000
- CEA Guidelines
ensuring reliable operation under international power quality requirements.
Advantages of InPhase Smart Hybrid Active Filter
The intelligent SHAF architecture offers several advantages over conventional compensation systems.
Benefits include:
- Dynamic Reactive Power Compensation
- Harmonic Mitigation
- Reduced KVAH Billing
- Improved Voltage Stability
- Higher System Efficiency
- Lower Energy Losses
- Reduced Capacitor Switching
- Extended Equipment Life
- Improved Power Factor
- Modular Expansion
- Lower Maintenance Cost
- Better Return on Investment
Applications
The advanced InPhase Hybrid Filter Specifications made the InPhase SHAF suitable for numerous industrial sectors.
Applications include:
- Steel Plants
- Cement Industries
- Textile Mills
- Pharmaceutical Manufacturing
- Automotive Plants
- Paper Industries
- Food Processing Plants
- Commercial Buildings
- Hospitals
- Airports
- Metro Rail Systems
- Renewable Energy Plants
- Data Centers
Why Choose InPhase Hybrid Filters?
InPhase designs Smart Hybrid Active Filters specifically for industrial environments where reliable power quality is critical.
Key advantages include:
- Indigenous product development
- Advanced RTPFC technology
- Intelligent passive harmonic filtering
- DSP-based control system
- High efficiency
- Modular architecture
- Remote monitoring capability
- Customized engineering support
- Proven industrial installations
- Comprehensive after-sales service
Unlike conventional APFC systems or standalone passive filters, the InPhase SHAF delivers intelligent, real-time compensation that adapts continuously to changing industrial load conditions.
Selecting the right Hybrid Filter Specifications is essential for achieving reliable power quality, improved power factor, lower harmonic distortion, and enhanced electrical system efficiency. As industries continue to expand their use of power electronic equipment and automation technologies, conventional compensation methods often become insufficient to address dynamic power quality challenges.
The InPhase Smart Hybrid Active Filter (SHAF) combines Real-Time Power Factor Correction (RTPFC) with a Passive Harmonic Filter to provide a comprehensive and cost-effective solution for reactive power compensation and harmonic mitigation. With high efficiency, fast response, modular scalability, and compliance with international standards, the InPhase SHAF helps industries reduce energy losses, improve equipment reliability, optimize KVAH billing, and build a more resilient electrical infrastructure for future growth.
