Power Quality Challenges and Solutions have become a top priority for modern industrial facilities as they increasingly rely on non-linear electrical loads such as Variable Frequency Drives (VFDs), UPS systems, rectifiers, induction furnaces, welding machines, and switched-mode power supplies. While these technologies improve efficiency, automation, and productivity, they also introduce harmonic distortion into the electrical network.
Excessive harmonics can lead to equipment overheating, transformer losses, capacitor failures, nuisance tripping, poor power factor, and increased maintenance costs. In many cases, industries also face financial penalties due to non-compliance with harmonic standards, making effective power quality management essential for reliable, efficient, and uninterrupted plant operation.
This case study, known as the Active Harmonic Filter Case Study, highlights how an Active Harmonic Filter (AHF) successfully mitigated harmonics in a poor power quality environment, improving system reliability, efficiency, and compliance.
In conclusion, the Active Harmonic Filter Case Study offers critical lessons for future projects.
The Active Harmonic Filter Case Study emphasizes the need for ongoing power quality assessment.
Following our Active Harmonic Filter Case Study, we recommend best practices for mitigation.
The insights from the Active Harmonic Filter Case Study are invaluable for industry leaders.
This Active Harmonic Filter Case Study highlights essential considerations for implementation.
Through the Active Harmonic Filter Case Study, we identify key performance improvements.
The Active Harmonic Filter Case Study illustrates the transformation in power quality.
Our Active Harmonic Filter Case Study provides real-world examples of effective solutions.
The findings of the Active Harmonic Filter Case Study serve as a guideline for other industrial facilities.
We will analyze the Active Harmonic Filter Case Study to uncover key benefits.
This Active Harmonic Filter Case Study reveals critical insights into power quality management.
In our Active Harmonic Filter Case Study, we explore various mitigation strategies.
The Active Harmonic Filter Case Study emphasizes the importance of addressing harmonic distortion effectively.
Understanding the Power Quality Challenges and Solutions
A large industrial manufacturing facility was experiencing persistent power quality issues that were affecting the reliability and efficiency of its electrical distribution system. The plant operated multiple VFD-driven motors, automated production lines, high-power rectifier loads, and other non-linear equipment that generated significant harmonic distortion under varying load conditions. As production expanded, the need for effective Power Quality Challenges and Solutions became increasingly important to maintain uninterrupted operations.
The facility faced several Power Quality Challenges and Solutions related to high Total Harmonic Distortion (THD), poor power factor, transformer overheating, capacitor stress, and frequent nuisance tripping of protective devices. Engineers recognized that identifying the right Power Quality Challenges and Solutions was essential to improving system performance and reducing maintenance costs.
A detailed electrical assessment was conducted to evaluate the root causes of these Power Quality Challenges and Solutions. The study revealed that harmonics generated by VFDs and rectifier loads were adversely affecting critical equipment and increasing electrical losses throughout the plant. Implementing suitable Power Quality Challenges and Solutions became necessary to restore system stability and improve energy efficiency.
The engineering team analyzed multiple Power Quality Challenges and Solutions before selecting an Active Harmonic Filter as the optimal mitigation method. By addressing these Power Quality Challenges and Solutions, the facility aimed to achieve IEEE 519 compliance, improve power factor, reduce transformer loading, and enhance overall power quality. This case study demonstrates how the right Power Quality Challenges and Solutions can significantly improve electrical system reliability, minimize downtime, lower operating costs, and support long-term industrial productivity.
Symptoms Observed
-
- Frequent tripping of circuit breakers
-
- Overheating of transformers and cables
-
- Failure of capacitor banks
-
- High neutral currents
-
- Reduced equipment life
-
- Poor power factor performance
-
- Increased energy losses
A detailed power quality audit revealed that Total Harmonic Distortion (THD) levels were significantly above acceptable limits. The harmonic currents generated by the non-linear loads were distorting the electrical waveform and affecting overall system performance.
Power Quality Analysis
Measurements conducted at the Main LT Panel indicated:
| Parameter | Measured Value |
|---|---|
| Current THD (THDi) | 28% – 35% |
| Voltage THD (THDv) | 8% – 10% |
| Power Factor | 0.88 – 0.92 |
| Neutral Current | Excessive |
| Equipment Temperature | Above normal |
The analysis confirmed that the plant was operating in a poor power quality environment and required immediate harmonic mitigation.
Why Harmonics Are Dangerous
Harmonics are unwanted frequencies generated by non-linear electrical loads. These harmonics distort the sinusoidal waveform and create multiple operational issues.
Common Effects of Harmonics
-
- Transformer overheating
-
- Cable insulation deterioration
-
- Motor heating and vibration
-
- Reduced system efficiency
-
- Capacitor bank failures
-
- Increased power losses
-
- Voltage distortion
-
- Reduced equipment lifespan
Without corrective action, these issues can result in production downtime and significant financial losses.
The Solution: Active Harmonic Filter (AHF)
To address the problem, the facility implemented an InPhase Active Harmonic Filter system.
Active Harmonic Filters continuously monitor electrical current and identify harmonic components in real time. Using advanced digital signal processing and power electronics technology, the AHF generates equal and opposite compensation currents that cancel harmonics before they affect the electrical network. Active Harmonic Filters provide real-time harmonic detection and mitigation for industrial power quality improvement.
Key Features of the Installed AHF
-
- Real-time harmonic compensation
-
- Dynamic load adaptation
-
- Harmonic reduction up to the 50th order
-
- Reactive power compensation
-
- Power factor improvement
-
- IEEE 519 compliance support
-
- Modular and scalable design
Unlike passive filters, the AHF automatically adjusts to changing load conditions and provides continuous protection.
Implementation Process
The project was executed in the following stages:
1. Power Quality Audit
Comprehensive measurements were conducted to identify harmonic sources and determine compensation requirements.
2. System Design
Engineering teams analyzed load profiles, harmonic spectrum data, and network characteristics to select the appropriate AHF capacity.
3. Installation

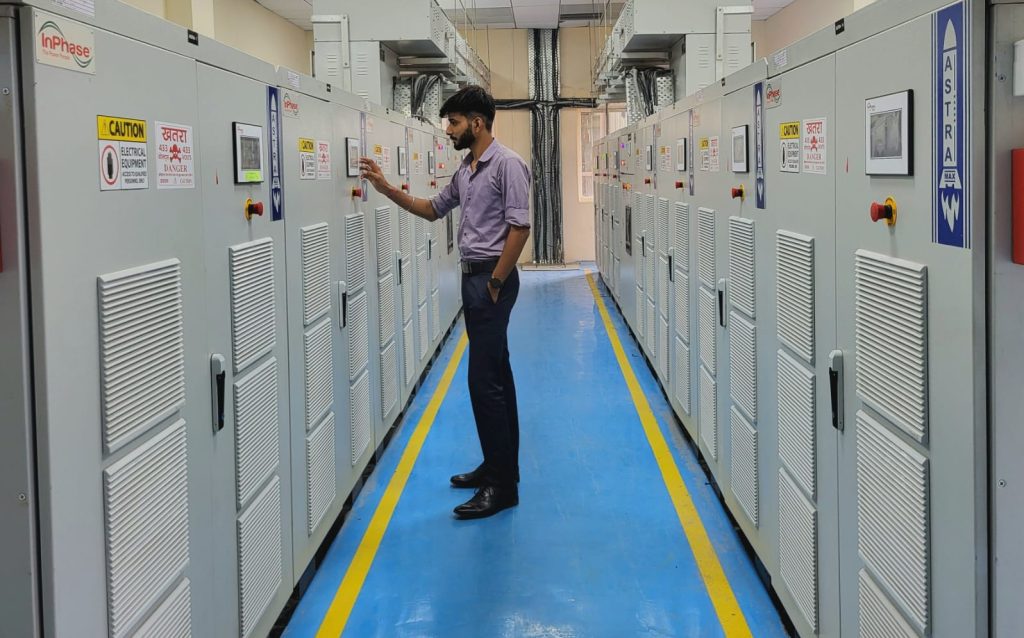

The Active Harmonic Filter was installed at the Main Distribution Panel with minimal disruption to plant operations.
4. Commissioning and Validation
Performance testing was carried out under varying load conditions to verify harmonic reduction and power factor improvement.
Results Achieved
Following the installation of the Active Harmonic Filter, the facility recorded significant improvements.
| Parameter | Before AHF | After AHF |
|---|---|---|
| Current THD | 28% – 35% | < 5% |
| Voltage THD | 8% – 10% | < 3% |
| Power Factor | 0.88 – 0.92 | > 0.99 |
| Neutral Current | High | Significantly Reduced |
| Equipment Heating | Severe | Normalized |
The reduction in THD levels improved equipment reliability and reduced electrical stress across the facility.
Benefits Realized
Improved Equipment Reliability
Transformers, motors, and switchgear operated at lower temperatures, extending their service life.
Reduced Maintenance Costs
The elimination of harmonic-related failures significantly reduced maintenance interventions.
Better Energy Efficiency
Reduced losses in cables and transformers improved overall system efficiency.
Enhanced Power Factor
Reactive power compensation improved power factor and minimized utility penalties.
Compliance with Standards
The facility achieved harmonic performance levels aligned with IEEE 519 recommendations.
Why Active Harmonic Filters Are the Preferred Choice
Modern industrial facilities require dynamic harmonic mitigation solutions. Active Harmonic Filters provide several advantages over conventional passive systems:
-
- Real-time compensation
-
- No risk of resonance
-
- Adaptive performance
-
- Compact footprint
-
- Scalable architecture
-
- Simultaneous harmonic and reactive power compensation
Industries worldwide are increasingly adopting Active Harmonic Filters to maintain stable, efficient, and reliable electrical systems. Active Harmonic Filters help industries mitigate harmonics, improve network stability, and avoid power quality issues caused by non-linear loads.
Industries Benefiting from AHF Technology
Active Harmonic Filters are widely used in:
-
- Steel Plants
-
- Cement Plants
-
- Automotive Manufacturing
-
- Textile Industries
-
- Data Centers
-
- Hospitals
-
- Metro Rail Systems
-
- Process Industries
-
- Renewable Energy Installations
-
- Commercial Buildings
Conclusion
Poor power quality can significantly impact industrial productivity, equipment reliability, energy efficiency, and operational costs. Harmonic distortion remains one of the most common electrical issues faced by modern industries, making effective Power Quality Challenges and Solutions essential for maintaining reliable plant performance.
This case study demonstrates how an Active Harmonic Filter successfully transformed a poor power quality environment into a stable, efficient, and IEEE 519-compliant electrical network. By implementing the right Power Quality Challenges and Solutions, the facility reduced harmonic distortion, improved power factor, minimized transformer losses, prevented capacitor failures, and enhanced overall system reliability.
The measurable improvements achieved through these Power Quality Challenges and Solutions resulted in lower maintenance costs, improved equipment life, reduced downtime, and increased operational efficiency. The case study also highlights how selecting appropriate Power Quality Challenges and Solutions enables industries to overcome complex electrical problems while ensuring long-term system stability.
For industries seeking a proven approach to harmonic mitigation and electrical system optimization, Active Harmonic Filters represent one of the most effective Power Quality Challenges and Solutions available today. Investing in advanced Power Quality Challenges and Solutions not only improves compliance with IEEE 519 standards but also supports sustainable operations, higher productivity, and reduced energy losses. As industrial facilities continue to adopt non-linear loads, implementing reliable Power Quality Challenges and Solutions will remain critical for achieving long-term operational excellence and maximizing return on investment.
About InPhase Power
InPhase Power Technologies Pvt Ltd is an Indian manufacturer specializing in Power Quality Solutions, Active Harmonic Filters (AHF), Static VAR Generators (SVG), Hybrid Filters, and advanced power compensation technologies. With extensive experience across industrial sectors, InPhase helps customers achieve cleaner, more efficient, and more reliable electrical systems.
